The METEOR 735C baseline configuration includes a 400KW transmitter. It is driven by a solid-state modulator with graceful degradation providing fault-tolerant operation and higher system availability.
METEOR 735C

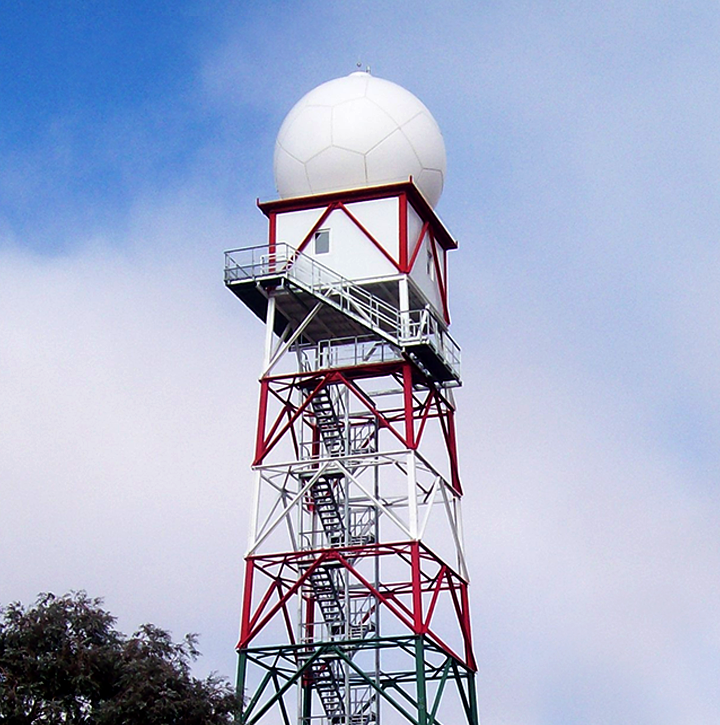

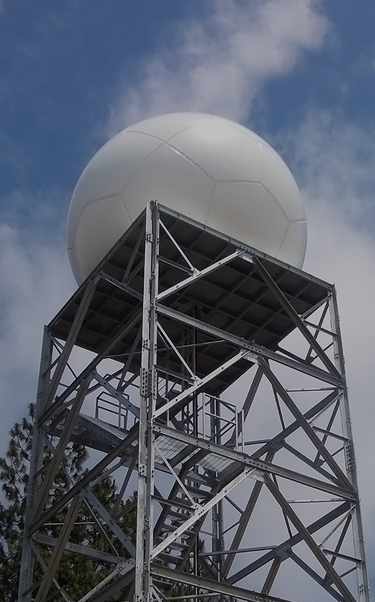

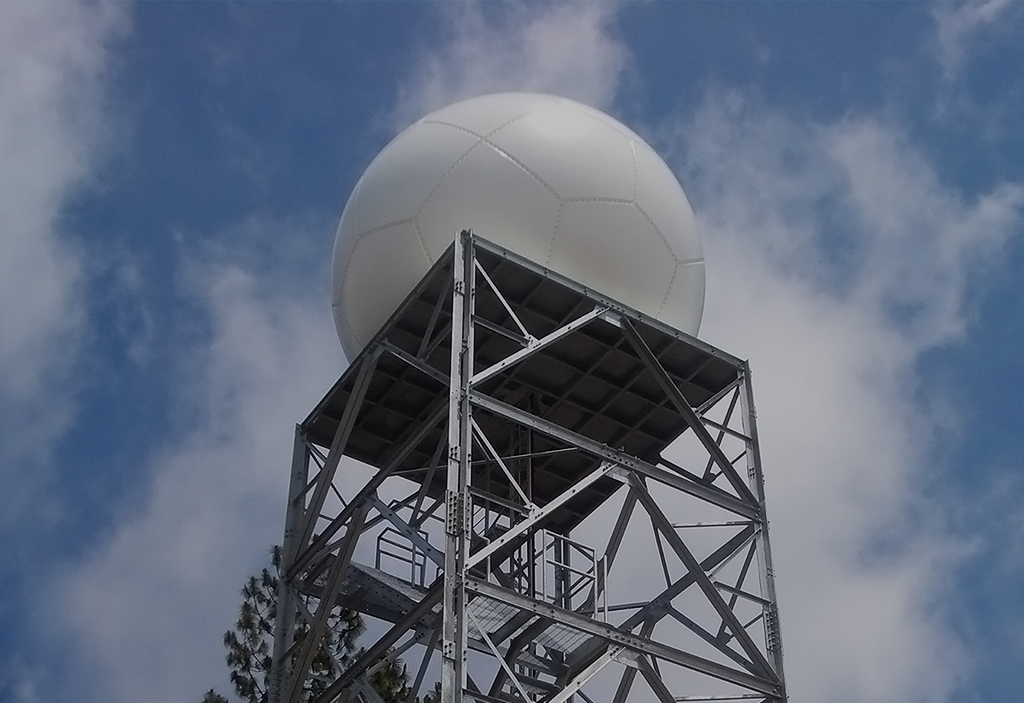

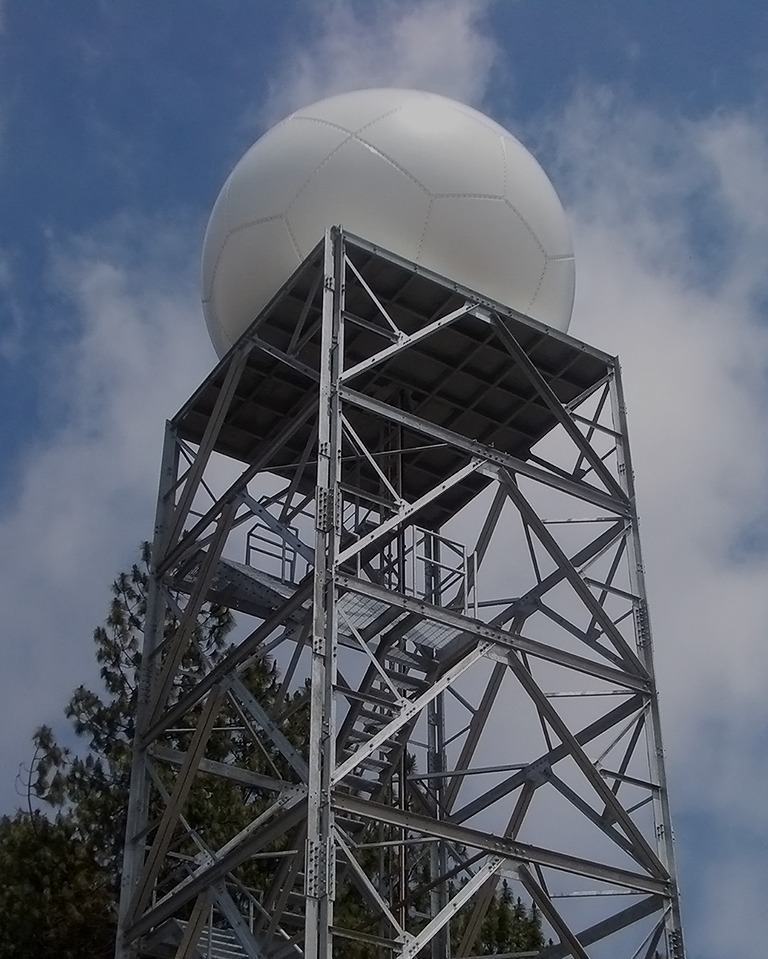

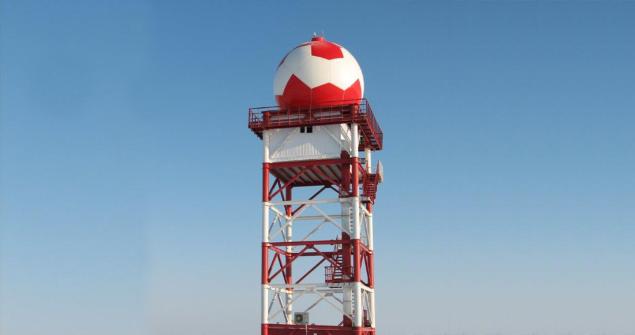

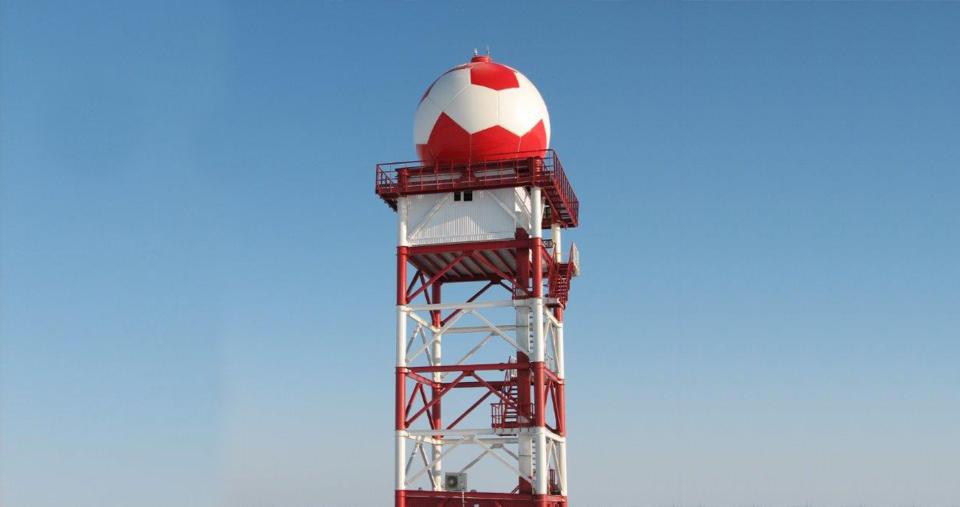

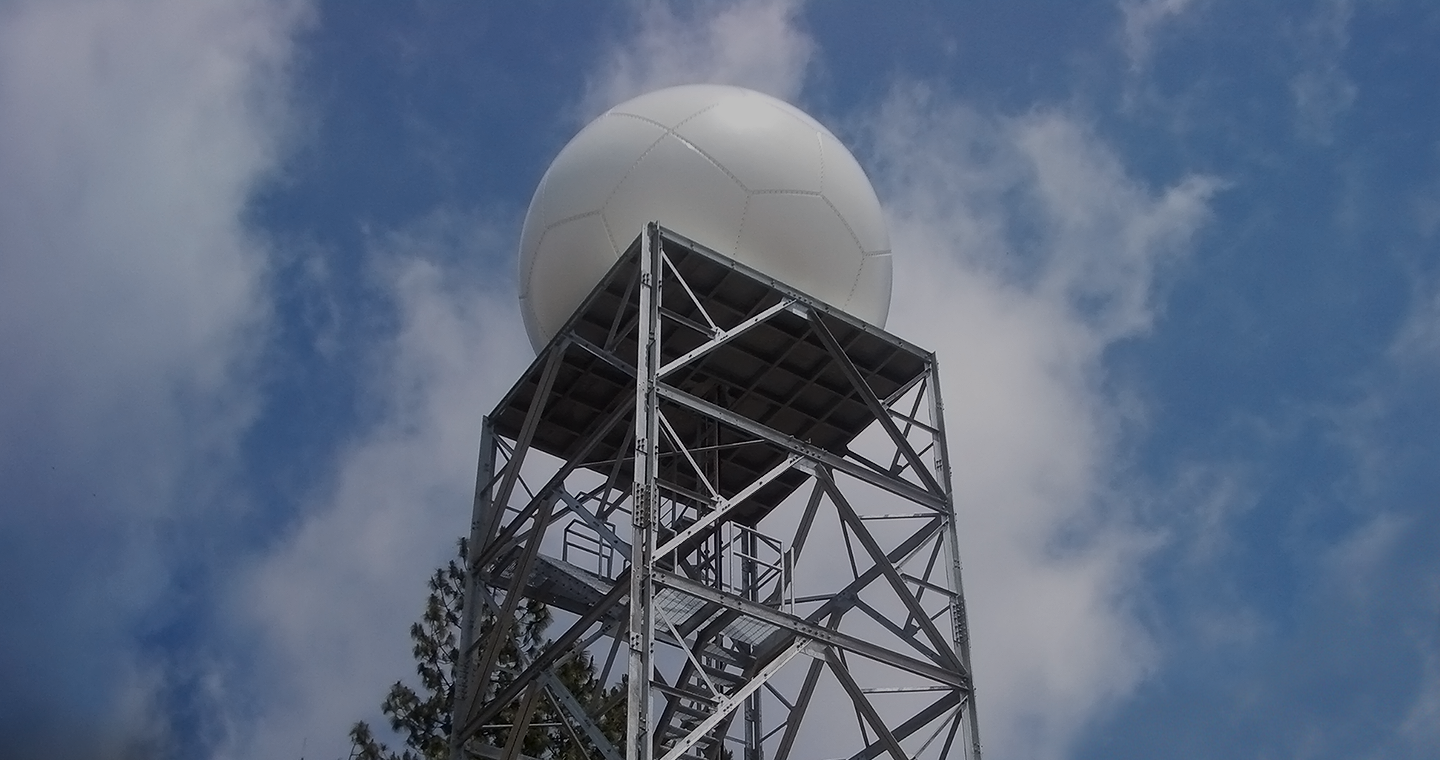

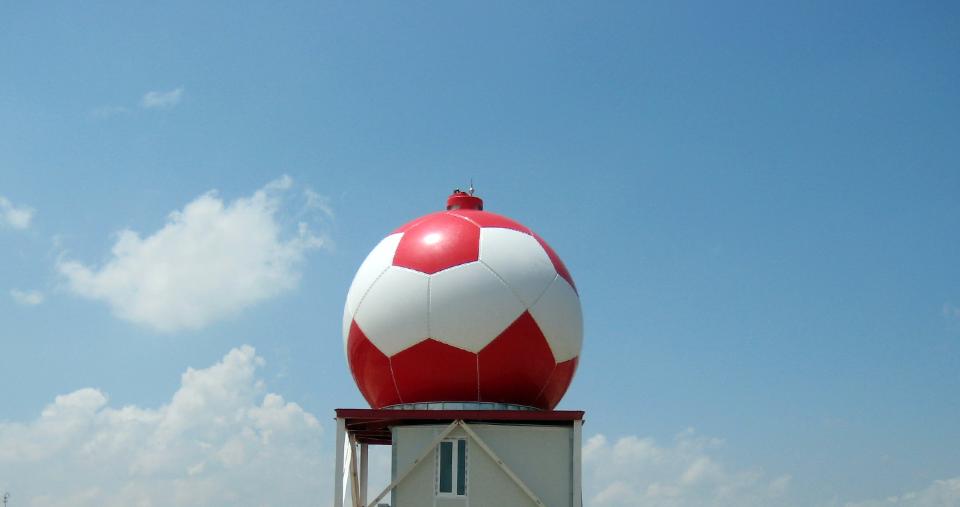

The METEOR 735C is a high-powered C-Band weather radar designed for the precise quantitative evaluation of precipitation and wind fields in the mean latitude regions. It is particularly well suited for the everyday needs and applications of national meteorological services seeking the best price/performance ratio in terms of coverage, broadband measurement applications, reliability and lifecycle costs.
Features
The METEOR 735C systems are supplied with GDRX® and Rainbow®, ensuring optimum data quality for the accurate measurement of rain rates, precise detection of severe weather phenomena as well as tracking and nowcasting of such events at medium ranges.
The METEOR 735C is available with single or dual polarization (DP). The dual polarization option enhances the measurement of precipitation intensity and makes way for the categorization of different types of hydrometeor such as drizzle, rain, hail and snow. Thanks to its high-powered transmitter, the METEOR 735C operates in simultaneous DP mode with almost no loss of sensitivity compared to conventional 250KW single-polarized systems.
Technical data
Mode
Doppler, Dual-Polarization
Operating Frequency Range
5430 – 5750 MHz (C-Band)
Typical Operational Range /Technical Range
200 km / 600 km
Maximum Doppler Velocity
± 128 m/s
System Phase Stability
≤ 0.15°
Transmitter Type
Coaxial Magnetron with solid state, IGBT-switched modulator
Peak Power
400 KW
Noise Figure
(Total Receiver)
≤ 2.0 dB
